Methods by Category

Selected methods by category. For a complete list of methods, see Methods Alphabetically.

App Builder

Method	Description
createApp	Create the specified App.
generateAppDoc	Generate App Doc for the current App.
generateDbDoc	Generate Database Doc for the current App's currently open database.
refreshAppInspector	Refresh the attributes in the App Inspector and the Page Builder Assistant.
selectWorkspace	Select the specified Workspace.
setRelationship	Relate two sections.
showAppWizard	Display the App Wizard.

Commands and Scripts

Method	Description
evaluate	Evaluate expression.
evaluateAsync	Evaluate expression asynchronously.
evaluateJavaScript	Call server-side JavaScript function and return any result.
evaluatePython	Call server-side Python function and return any result.
execute	Execute command.
run	Run the specified executable.
setupUI	Execute setupui.prg.
spawn	Run the specified executable.

Data Sessions

Method	Description
popDataSession	Restore the current data session.
pushDataSession	Save the current data session.

Dialogs and Panels

Also see: Working with UI Page Libraries

Method	Description
hideDialog	Hide the current dialog.
hideDialogPage	Hide the most recent dialog page.
hideDialogPanel	Hide the current dialog panel.
setDialogResult	Set the result for a dialog or dialog panel.
showDialog	Pop up a dialog with an embedded page.
showDialogForm	Pop up a dialog with an embedded form.
showDialogPage	Pop up a dialog with an embedded page over the whole page viewport.
showDialogPanel	Slide in a dialog panel with an embedded page.

Email

Method	Description
emailReport	Email the specified report.
sendmail	Send an email with optional attachment(s).

Environment and State

Method	Description
isConnected	Return logical true if connected, false otherwise.
isDesktop	Return logical true if on desktop (App Builder or App Center desktop client), false otherwise.
isDevMode	Return logical true if on desktop (App Builder or App Center desktop client), false otherwise.
isLoadingApp	Return logical true if loading App, false otherwise.
isKioskMode	Return logical true if in kiosk mode, false otherwise.
isPhone	Return logical true if client is phone mobile device, false otherwise.
isPhoneGap	Return logical true if client is mobile device, false otherwise.
isRuntimeMode	Return logical true if in runtime mode, false otherwise.
isTablet	Return logical true if client is tablet mobile device, false otherwise.
locale	Return the current locale.
runtimeCaption	Return the runtime caption.
userDomain	Return the domain/tenancy for the current user.
userName	Return the username for the current user.
userRoles	Return the roles for the current user.
version	Return the current Lianja version (HTML formatted).

HTTP Server (Internal)

Method	Description
pauseHttpServer	Pause the internal HTTP server.
resumeHttpServer	Resume the internal HTTP server.
startHttpServer	Start the internal HTTP server.
stopHttpServer	Stop the internal HTTP server.

Messages

Method	Description
alert	Show the specified alert message.
confirm	Show the specified message and pass the result (true\|false) to the specified callback function.
hideLoadingMessage	Hide the current loading message.
hideMessage	Hide the current message.
showErrorMessage	Show the specified error message.
showErrorMessageWithIcon	Show the specified error message.
showLoadingMessage	Show the specified loading message.
showMessage	Show the specified message.
showMessageWithIcon	Show the specified message.
showNotification	Show the specified notification message.
showSuccessMessage	Show the specified success message.
showSuccessMessageWithIcon	Show the specified success message.
showWarningMessage	Show the specified warning message.
showWarningMessageWithIcon	Show the specified warning message.

Object Referencing

Method	Description
createCursor	Return a reference to a Cursor object.
findElementByID	Return a reference to the object with the specified id.
get	Return a reference to the object with the specified id.
getControlsource	Return a reference to the formitem with the specified controlsource.
getElementByControlsource	Return a reference to the formitem with the specified controlsource.
getElementByID	Return a reference to the object with the specified id.
item	Return a reference to the Page object at the specified position.
openDatabase	Open the specified database and return a Database object reference.

Page Element Display

Method	Description
hideNavigationPanel	Hide the Navigation Panel.
hideProgressBar	Hide the ProgressBar.
showNavigationPanel	Show the Navigation Panel.
showPagesMenu	Show the Pages Menu.
toggleLeftSidebarVisibility	Toggle left sidebar visibility.
toggleNavigationPanel	Toggle Navigation Panel visibility.
showProgressBar	Show the ProgressBar.
toggleRightSidebarVisibility	Toggle right sidebar visibility.

Query Tools

Method	Description
showQueryBuilder	Embed the Query Builder in a standard dialog.
showQueryBuilderPanel	Embed the Query Builder in a dialogPanel.
showQueryPicker	Embed the Query Picker in a standard dialog.
showQueryPickerPanel	Embed the Query Picker in a dialogPanel.

Reports and Printing

Also see this blog article: Working with reports in Lianja 9.4

Method	Description
emailReport	Email the specified report.
exportReport	Export the specified report to a file of a specified type.
loadReport	Load the specified report into a specified section.
previewReport	Open the specified report in print preview.
printFile	Print the specified file to a printer destination.
printHtml	Print the specified HTML.
printHtmlFile	Print the specified HTML file.
printReport	Print the specified report.
saveReportAsPdf	Save the specified report to a PDF, optionally specifying a filter.

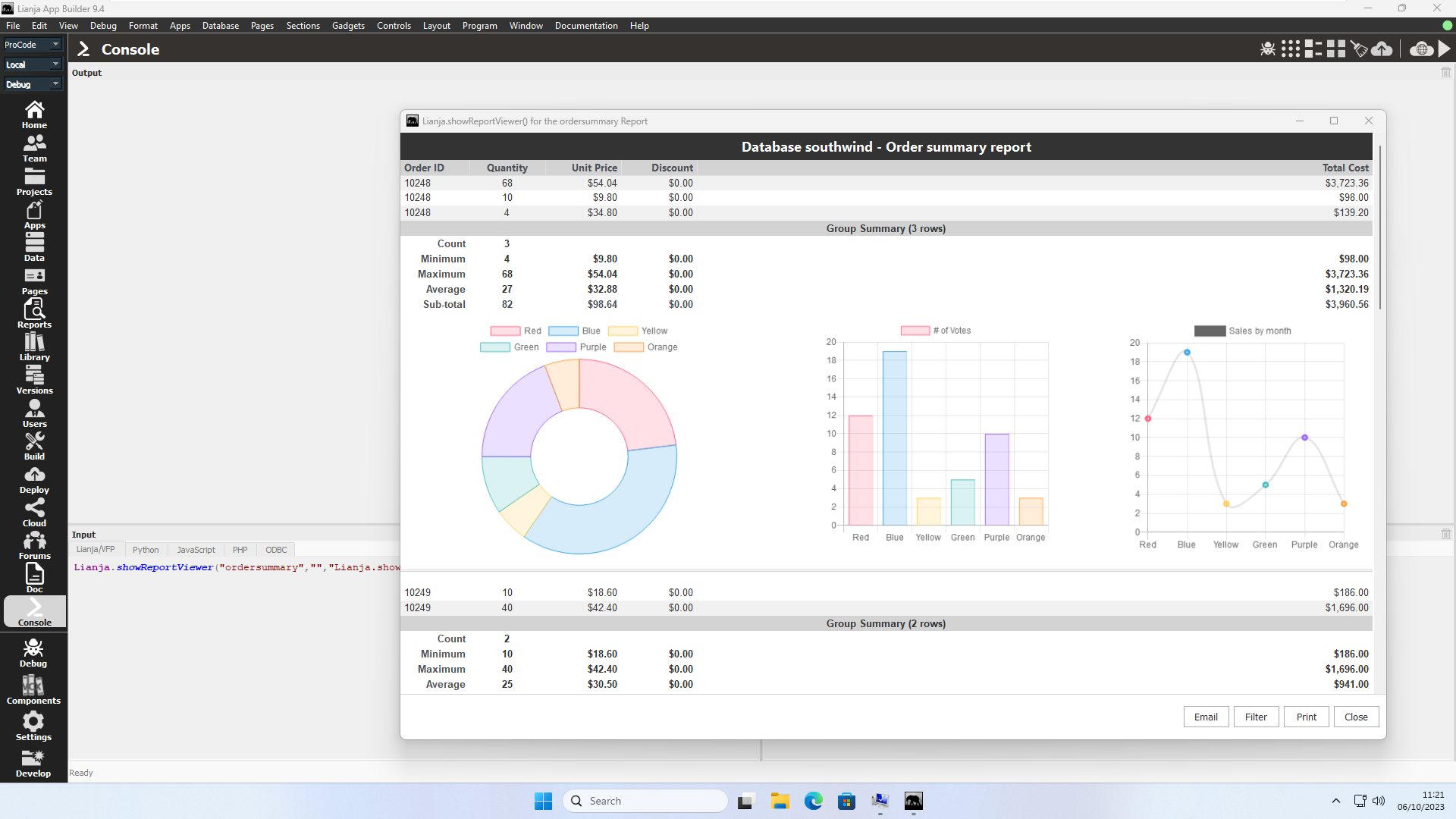

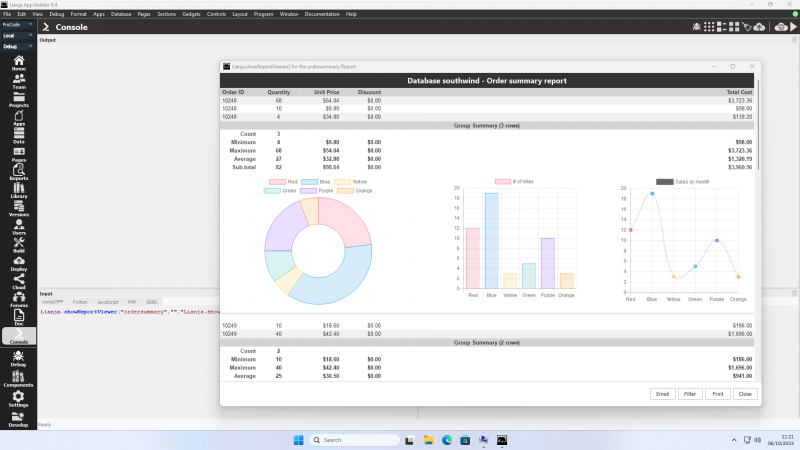

showReportViewer	Show the specified report in the report viewer.

Standalone Apps

Also see: Standalone Executables on Windows

Method	Description
debug	Open the Standalone Debugger when running a Windows standalone App. From v9.5.
getParameter	Get the value of a key. If the key is not defined, return a default value. Key/value pairs can be defined in the app.conf file for Windows standalone Apps. From v9.5.
resume	Resume previously suspended execution when debugging a Windows standalone App. From v9.5.
suspend	Suspend execution when debugging a Windows standalone App. From v9.5.

Text Output

Method	Description
console	Write the specified string to the console output window.
log	Write the specified string to the log.
logEvent	Write the specified string to the Performance Metrics tab in the Troubleshooter.
writeDebug	Write the specified string to the debug file.
writeError	Write the specified string to the console.
writeLog	Write the specified string to the log (desktop) or JavaScript Console (web/mobile).
writeOutput	Write the specified string to the Output Window (desktop) or JavaScript Console (web/mobile).

Translation

Method	Description
setTranslationText	Override default translation.
switchLanguage	Switch to the language code specified.

UI States

Method	Description
changeState	Set the specified UI state(s).
popState	Call Lianja.resetState() on the last UI state pushed onto the stack then remove it and call Lianja.changeState() on the UI state on the top of the stack.
resetState	Set the UI state(s) if specified, or set all UI components to their Initial UI State.

Uploading

Method	Description
uploadFile	Upload a file.
uploadImageFiles	Upload one or more image files.

Virtual Tables

Method	Description
clearNamedParameters	Clear all named parameters.
setNamedParameter	Set the specified named parameter to the specified value.

Methods Alphabetically

Key

	Supported on this client. Note that for the web/mobile client, this applies to client-side code. The Lianja system object is not available in server-side functions and procedures.
	Supported in Lianja/VFP scripting only on this client.
	Not currently supported on this client.

The Lianja System Object class supports the following methods:

addObject

Desktop	Web	Mobile

Args

existing as Object | newobject as Character, class as Character [, caption as Character]

Description

Add an existing object or a new object, in which case the object's class must also be specified and optionally its caption.

addPage

Desktop	Web	Mobile

Args

id as Character, caption as Character

Description

Add a new Page with the specified id and caption.

addProperty

Desktop	Web	Mobile

Args

property as Character, value as Expression

Description

Add a property and set its value.

addTool

Desktop	Web	Mobile

Args

class as Character, caption as Character

Description

Add a tool

alert

Desktop	Web	Mobile

Args

message as Character

Description

Show the specified message.

applyMetaData

Desktop	Web	Mobile

Args

None

Description

Apply MetaData to all pages in the current App.

beep

Desktop	Web	Mobile

Args

None

Description

Sound a 'beep'.

changeState

Desktop	Web	Mobile

Args

statelist as Character

Description

Set the UI state(s) specified in the comma-separated string statelist. From v9.1.

clearNamedParameters

Desktop	Web	Mobile

Args

None

Description

Clear all named parameters previously set using setNamedParameter(name,value).

clipBoard

Desktop	Web	Mobile

Args

[clipping as Character]

Description

Read from or write to the system clipboard.

closeApp

Desktop	Web	Mobile

Args

None

Description

Close the currently open App.

confirm

Desktop	Web	Mobile

Args

message as Character, callback as Function

Description

Show the specified message and pass the result (true|false) to the callback function.

createApp

Desktop	Web	Mobile

Args

app as Character

Description

Create the specified App.

createCursor

Desktop	Web	Mobile

Args

database as Character, table as Character

Description

Return a reference to a Cursor object for the specified table from the specified database.

debug

Desktop	Web	Mobile

Args

None

Description

Open the Standalone Debugger when running a Windows standalone App. From v9.5.

deployAppIcon

Desktop	Web	Mobile

Args

app as Character, filename as Character [, pagecenter as Logical]

Description

Deploy image file for App or Page Center.

emailReport

Desktop	Web	Mobile

Args

reportname as Character, filter as Character, emailto as Character, emailfrom as Character, subject as Character, body as Character

Description

Email the specified report as an attachment. From v9.4.

Argument	Description
reportname	One of the following: The name of a report created in the Report Builder. The name of an HTML file. The name of a .rsp, .pysp or .jssp file that will dynamically generate the HTML to be viewed. The name of an HTML article, e.g. "article:/myarticle.html". See ArticleView Options for information on ArticleView sections and document data merging.
filter	A where condition, e.g. "orderid=10428"
emailto	The recipient identity in the format: <Full Name>email@domain e.g. "<Lianja Sales>sales@lianja.com" Note there is no space between '>' and the email address. If the '<Full Name>' is not specified, '<Lianja Cloud User>' is used.
emailfrom	The sender identity in the format: <Full Name>email@domain e.g. "<Lianja Sales>sales@lianja.com" Note there is no space between '>' and the email address. If the '<Full Name>' is not specified, '<{username()}>' is used. If the environment variable SENDGRID_SENDERIDENTITY is set (as described below), this overrides the emailfrom value.
subject	The email subject.
body	The email body in plain text or HTML.

The email can optionally be sent using Twilio SendGrid.

To do so, the following are required:

Signup for SendGrid at sendgrid.com
Set up the following environment variables:

Environment Variable	Required	Value
SENDGRID_APIKEY	Yes	Your SendGrid API KEY.
SENDGRID_SENDERIDENTITY	No	Your SendGrid verified sender identity in the format: <Full Name>email@domain e.g. "<Lianja Sales>sales@lianja.com" Note there is no space between '>' and the email address. If this environment variable is not set, the email from '<Full Name>' is '<{username()}>' and your registered SendGrid email address.
SENDGRID_REPLYTO	No	The reply to address for emails. If this environment variable is not set, 'noreply@lianja.com' is used.
SENDGRID_REPLYTONAME	No	The '<Full Name>' for the reply to address for emails.

evaluate

Desktop	Web	Mobile

Args

expression as Character [, onsuccess as Function [, onerror as Function]]

Description

Evaluate expression. In the LianjaWebFramework, business procedures in custom libraries on the server can also be called. To call a procedure in a library, prefix the procedure name with the library name and '::'

var result = Lianja.evaluate("mylib::myproc()");

The expression can include a scripting language prefix to indicate the target language, i.e. 'javascript:', 'php:', 'python:'. If none is specified, Lianja/VFP scripting is used.

evaluateAsync

Desktop	Web	Mobile

Args

expression as Character [, onsuccess as Function [, onerror as Function]]

Description

Evaluate expression asynchronously. In the LianjaWebFramework, business procedures in custom libraries on the server can also be called. To call a procedure in a library, prefix the procedure name with the library name and '::'

var result = Lianja.evaluate("mylib::myproc()");

The expression can include a scripting language prefix to indicate the target language, i.e. 'javascript:', 'php:', 'python:'. If none is specified, Lianja/VFP scripting is used.

evaluateJavaScript

Desktop	Web	Mobile

Args

functioncall as Character

Description

Call server-side JavaScript function and return any result.

evaluatePython

Desktop	Web	Mobile

Args

functioncall as Character

Description

Call server-side Python function and return any result.

execute

Desktop	Web	Mobile

Args

command as Character

Description

Execute the specified command.

exportReport

Desktop	Web	Mobile

Args

reportname as Character, exporttype as Character, outputfilename as Character, filter as Character

Description

Export the specified report. From v9.4.

Argument	Description
reportname	The name of a report created in the Report Builder.
exporttype	The export file type: "csv" "json" "xml" "ado" "html" "excel"
outputfilename	The name of the output file.
filter	A where condition, e.g. "orderid=10428"

findElementByID

Desktop	Web	Mobile

Args

id as Character

Description

Return a reference to the object with the specified id. See Working with the Lianja Object Model for more details.

fullPath

Desktop	Web	Mobile

Args

filename as Character

Description

Return the specified file's full path as a character string. The filename can be prefixed with known locations and will be translated i.e. app:/, lib:/, page lib:/, extensions:/, packages:/, data:/, themes:/, metatypes:/, cloudserver:/, wwwroot:/, images:/.

generateAppDoc

Desktop	Web	Mobile

Args

filename as Character

Description

Generate App Doc for the current App. The file will be created in the current directory with a '.html' extension if no path or extension is specified.

generateDbDoc

Desktop	Web	Mobile

Args

filename as Character

Description

Generate Database Doc for the current App's currently open database. The file will be created in the current directory with a '.html' extension if no path or extension is specified.

get

Desktop	Web	Mobile

Args

id as Character

Description

Return a reference to the object with the specified id. See Working with the Lianja Object Model for more details.

getAppCategories

Desktop	Web	Mobile

Args

None

Description

Return a JSON string of App Categories and the Apps in those Categories.

getAppInfo

Desktop	Web	Mobile

Args

appname as Character [, category as Character]

Description

Return a JSON string of information about the specified published App. The App category, tab name or full category can optionally be specified, e.g.

? Lianja.getAppinfo("lianjacustomcanvas")
? Lianja.getAppinfo("lianjacustomcanvas","Demo Desktop Apps")
? Lianja.getAppinfo("lianjacustomcanvas","Examples")
? Lianja.getAppinfo("lianjacustomcanvas","Examples|Demo Desktop Apps")

The following App Center Tile information is returned:

category
name
caption
description
icon
size
backcolor
author
version
dynamic
timerinterval
timeraction
dynamiccounter
countertimerinterval
countertimeraction

getAttr

Desktop	Web	Mobile

Args

name as Character

Description

Returns the value of the named App setting. See also Custom Builders.

getAudio

Desktop	Web	Mobile

Args

Description

See Developing PWA Apps.

getConnection

Desktop	Web	Mobile

Args

None

Description

Return the connection type, e.g. 'WiFi connection'.

getControlsource

Desktop	Web	Mobile

Args

controlsource as Character

Description

Return a reference to the formitem bound to the specified controlsource. See Working with the Lianja Object Model for more details.

getCursor

Desktop	Web	Mobile

Args

alias as Character

Description

Return a reference to a Cursor object for the specified table alias.

getCurrentAcceleration

Desktop	Web	Mobile

Args

onSuccess as Function, onError as Function

Description

Return the current acceleration along the x, y, and z axes as an object.

getCurrentLocation

getCurrentPosition

Desktop	Web	Mobile

Args

onSuccess as Function, onError as Function

Description

Return the current position as a position object.

getData

Desktop	Web	Mobile

Args

controlsource as Character

Description

Return the current value of the specified data controlsource.

getDialogResult

Desktop	Web	Mobile

Args

None

Description

Works in conjunction with the Lianja.setDialogResult() method to return the set value. It can also be used to return the result of the Lianja.showMoverDialog() method on the desktop.

getElementByControlsource

Desktop	Web	Mobile

Args

controlsource as Character

Description

Return a reference to the formitem bound to the specified controlsource. See Working with the Lianja Object Model for more details.

getElementByID

Desktop	Web	Mobile

Args

id as Character

Description

Return a reference to the object with the specified id. See Working with the Lianja Object Model for more details.

getFiles

Desktop	Web	Mobile

getOrientation

Desktop	Web	Mobile

getParameter

Desktop	Web	Mobile

Args

key as Character, default as Character

Description

Get the value of key. If key is not defined, default is returned. Key/value pairs can be defined in the app.conf file for Windows standalone Apps. From v9.5.

getPhoto

Desktop	Web	Mobile

getPicture

Desktop	Web	Mobile

Args

onSuccess as Function, onError as Function [, cameraOptions as Object]

Description

Take a photo using the camera or retrieve a photo from the device's image gallery. Returns a file URI or base64 string. If cameraOptions is not specified, a source selection prompt is displayed and the file URI is returned.

getURL

Desktop	Web	Mobile

Args

url as Character [, username as Character, password as Character [, filename as Character]]

Description

Return a string or, if filename is specified, the file size.

getVideo

Desktop	Web	Mobile

hideDialog

Desktop	Web	Mobile

Args

None

Description

Hide the current modal dialog if one is visible.

hideDialogPage

Desktop	Web	Mobile

Args

[zoomin as Boolean]

Description

Hide the most recent dialog Page (Lianja.showDialogPage()) if one is visible.

hideDialogPanel

Desktop	Web	Mobile

Args

None

Description

Hide the current dialog panel if one is visible.

hideLoadingMessage

Desktop	Web	Mobile

Args

None

Description

Hide the current loading message if one is visible.

hideMessage

Desktop	Web	Mobile

Args

None

Description

Hide the current message if one is visible.

hideNavigationPanel

Desktop	Web	Mobile

Args

None

Description

Hide the Navigation Panel if one is visible.

hideProgressBar

Desktop	Web	Mobile

Args

None

Description

Hide the ProgressBar if one is visible.

home

Desktop	Web	Mobile

Args

None

Description

Return to the App Center.

isConnected

Desktop	Web	Mobile

Args

None

Description

Return logical true if connected, false otherwise.

isDesktop

Desktop	Web	Mobile

Args

None

Description

Return logical true if on desktop (App Builder or App Center desktop client), false otherwise.

isDevMode

Desktop	Web	Mobile

Args

None

Description

Return logical true if on desktop (App Builder or App Center desktop client), false otherwise.

isLoadingApp

Desktop	Web	Mobile

Args

None

Description

Return logical true if loading App, false otherwise.

isKisoskMode

Desktop	Web	Mobile

Args

None

Description

Return logical true if in kiosk mode, false otherwise.

isPhone

Desktop	Web	Mobile

Args

None

Description

Return logical true if client is phone mobile device, false otherwise.

isPhoneGap

Desktop	Web	Mobile

Args

None

Description

Return logical true if client is mobile device, false otherwise.

isRuntimeMode

Desktop	Web	Mobile

Args

None

Description

Return logical true if in runtime mode, false otherwise.

isTablet

Desktop	Web	Mobile

Args

None

Description

Return logical true if client is tablet mobile device, false otherwise.

item

Desktop	Web	Mobile

Args

position as Numeric

Description

Return a reference to the Page object at the specified position.

loadAddIns

Desktop	Web	Mobile

Args

None

Description

Search the 'Additional file path' and for each of the paths load a library if a file of the same name as the directory exists. All the scripting languages are supported, i.e. prg/dbo, js, ts, py, php, esx.

loadLibrary

Desktop	Web	Mobile

Args

filename as Character

Description

Load a library. All the scripting languages are supported, i.e. prg/dbo, js, ts, py, php, esx. The filename can be prefixed with known locations and will be translated, i.e. app:/, lib:/, page lib:/, extensions:/, packages:/, data:/, themes:/, metatypes:/, cloudserver:/, wwwroot:/, images:/. When using Lianja.loadLibrary() in development mode any changes to the library are detected and it is reloaded. Returns logical.

loadReport

Desktop	Web	Mobile

Args

sectionname as Character, reportname as Character [, filter as Character]

Description

Load the specified existing report into the specified section. An optional filter can be specified.

Argument	Description
sectionname	The name of the Report or WebView section in which to load the report, e.g. "page1.section1"
reportname	The name of a report created in the Report Builder.
filter	An optional where condition, e.g. "orderid=10428"

locale

Desktop	Web	Mobile

Args

None

Description

Return the current locale, e.g. 'en-GB'. See also Localization.

log

Desktop	Web	Mobile

Args

logtext as Character

Description

Write the logtext string to the log.

logEvent

Desktop	Web	Mobile

Args

logtext as Character

Description

Write the logtext string out to the Performance Metrics tab in the Troubleshooter.

login

Desktop	Web	Mobile

Args

username as Character, password as Character

Description

Log in with the specified username and password. In the Web and Mobile Clients, the #id selectors #username and #password are used and should be defined before calling Lianja.login().

logout

Desktop	Web	Mobile

Args

None

Description

Log out and return to the login screen. See also Customizing the Login Page.

makePayment

Desktop	Web	Mobile

openApp

Desktop	Web	Mobile

Args

app as Character [?args=<arguments>]

Description

Open the specified App.

openDatabase

Desktop	Web	Mobile

Args

database as Character

Description

Open the specified database and return a Database object reference.

pauseHttpServer

Desktop	Web	Mobile

Args

None

Description

Pause the internal HTTP server.

popDataSession

Desktop	Web	Mobile

Args

None

Description

Restore the current data session. Equivalent of the LianjaScript POP DATASESSION command, but available in all supported scripting languages in desktop Apps. Ignored in Web/Mobile Apps. Session can be saved using Lianja.pushDataSession().

popState

Desktop	Web	Mobile

Args

[+statelist as Character]

Description

Call Lianja.resetState() on the last UI state pushed onto the stack then remove it and call Lianja.changeState() on the UI state on the top of the stack. If the '+' prefixed statelist character string is specified, this applies the specified state(s) and also switches to the page that was current at the time the state(s) was/were pushed onto the stack.

previewReport

Desktop	Web	Mobile

Args

reportname as Character [, options as Character [, filter as Character]]

Description

Open the specified report in print preview.

Argument	Description
reportname	One of the following: The name of a report created in the Report Builder. The name of an HTML file. The name of a .rsp, .pysp or .jssp file that will dynamically generate the HTML to be viewed. The name of an HTML article, e.g. "article:/myarticle.html". See ArticleView Options for information on ArticleView sections and document data merging.
options	The options can include any of the properties handled by a report section as well as: printer=printername e.g. \\sharedname\printername orientation=landscape\|portrait papersize=letter\|a4\|etc. e.g. "papersize=custom,3.00,1.00,inch@@printer=\\127.0.0.1\HP DeskJet 2600 series"
filter	An optional where condition, e.g. "orderid=10428"

printFile

Desktop	Web	Mobile

Args

printer as Character, filename as Character

Description

Print the specified file to the specified printer destination. From v9.4.

Argument	Description
printer	The printer destination. e.g. "\\127.0.0.1\HP DeskJet 2600 series"
filename	The name of the file to print.

printHtml

Desktop	Web	Mobile

Args

id as Character

or:

html as Character, filename as Character [, options as Character]

Description

Print the specified HTML.

Web/Mobile

Argument	Description
id	Specify the id of a UI Element. The browser print dialog will be displayed to allow the HTML to be printed.

Desktop

Argument	Description
html	An expression to return an HTML string.
filename	The name of the output file (PDF). Alternatively, the filename can be an empty string, with a printer destination specified in the options, e.g. "papersize=custom,3.00,1.00,inch@@printer=\\127.0.0.1\HP DeskJet 2600 series"
options	The options can include any of the properties handled by a report section as well as: printer=printername e.g. \\sharedname\printername orientation=landscape\|portrait papersize=letter\|a4\|etc.

printHtmlFile

Desktop	Web	Mobile

Args

htmlfilename as Character, outputfilename as Character [, options as Character]

Description

Print the specified HTML file to the output file. From v9.4.

Argument	Description
htmlfilename	The name of an HTML file.
outputfilename	The name of the output file.
options	The options can include any of the properties handled by a report section as well as: printer=printername e.g. \\sharedname\printername orientation=landscape\|portrait papersize=letter\|a4\|etc. e.g. "papersize=custom,3.00,1.00,inch@@printer=\\127.0.0.1\HP DeskJet 2600 series"

printReport

Desktop	Web	Mobile

Args

reportname as Character [, options as Character]

Description

Print the specified report.

Argument	Description
reportname	One of the following: The name of a report created in the Report Builder. The name of an HTML file. The name of a .rsp, .pysp or .jssp file that will dynamically generate the HTML to be viewed. The name of an HTML article, e.g. "article:/myarticle.html". See ArticleView Options for information on ArticleView sections and document data merging.
options	The options can include any of the properties handled by a report section as well as: printer=printername e.g. \\sharedname\printername orientation=landscape\|portrait papersize=letter\|a4\|etc. e.g. "papersize=custom,3.00,1.00,inch@@printer=\\127.0.0.1\HP DeskJet 2600 series"

pushDataSession

Desktop	Web	Mobile

Args

None

Description

Save the current data session. Equivalent of the LianjaScript PUSH DATASESSION command, but available in all supported scripting languages in desktop Apps. Ignored in Web/Mobile Apps. Session can be restored using Lianja.popDataSession().

refreshAppInspector

Desktop	Web	Mobile

Args

None

Description

Refresh the attributes in the App Inspector and the Page Builder Assistant. Call this after setting attributes programatically.

removeObject

Desktop	Web	Mobile

Args

existing as Object

Description

Remove the specified object.

removePage

Desktop	Web	Mobile

Args

id as Character

Description

Remove the specified page.

removeProperty

Desktop	Web	Mobile

Args

property as Character

Description

Remove the specified property.

removeTool

Desktop	Web	Mobile

Args

existing as Object

Description

Remove the specified tool.

resetState

Desktop	Web	Mobile

Args

[statelist as Character]

Description

Set the specified UI state(s) if specified. If no statelist is specified, set all UI components to their Initial UI State. If a UI component has no Initial UI State set, the "false" properties (if specified) of all its specified UI states are applied.

resume

Desktop	Web	Mobile

Args

None

Description

Resume previously suspended execution when debugging a Windows standalone App. From v9.5.

resumeHttpServer

Desktop	Web	Mobile

Args

None

Description

Resume the internal HTTP server.

run

Desktop	Web	Mobile

Args

executable as Character [, args as Character]

Description

Run the specified executable passing the optionally specified comma-separated list of arguments.

runtimeCaption

Desktop	Web	Mobile

Args

None

Description

Return the runtime caption

saveApp

Desktop	Web	Mobile

Args

None

Description

Save the current App. See also Custom Builders.

saveReportAsPdf

Desktop	Web	Mobile

Args

reportname as Character, outputfilename as Character [, filter as Character]

Description

Save the specified report to a PDF, optionally specifying a filter. From v9.4.

Argument	Description
reportname	One of the following: The name of a report created in the Report Builder. The name of an HTML file. The name of a .rsp, .pysp or .jssp file that will dynamically generate the HTML to be viewed. The name of an HTML article, e.g. "article:/myarticle.html". See ArticleView Options for information on ArticleView sections and document data merging.
outputfilename	The name of the PDF output file.
filter	An optional where condition, e.g. "orderid=10428"

selectWorkspace

Desktop	Web	Mobile

Args

workspace as Character

Description

Select the specified workspace.

sendmail

Desktop	Web	Mobile

Args

emailto as Character, emailfrom as Character, subject as Character, body as Character [, attachments as Character]

Description

Send an email with optional attachment(s).

Argument	Description
emailto	The recipient identity in the format: <Full Name>email@domain e.g. "<Lianja Sales>sales@lianja.com" Note there is no space between '>' and the email address. If the '<Full Name>' is not specified, '<Lianja Cloud User>' is used.
emailfrom	The sender identity in the format: <Full Name>email@domain e.g. "<Lianja Sales>sales@lianja.com" Note there is no space between '>' and the email address. If the '<Full Name>' is not specified, '<{username()}>' is used. If the environment variable SENDGRID_SENDERIDENTITY is set (as described below), this overrides the emailfrom value.
subject	The email subject.
body	The email body in plain text or HTML.
attachments	The optional email attachments specified as a comma-separated list of filenames.

This is integrated with Twilio SendGrid, so the following are required:

Signup for SendGrid at sendgrid.com
Set up the following environment variables:

Environment Variable	Required	Value
SENDGRID_APIKEY	Yes	Your SendGrid API KEY.
SENDGRID_SENDERIDENTITY	No	Your SendGrid verified sender identity in the format: <Full Name>email@domain e.g. "<Lianja Sales>sales@lianja.com" Note there is no space between '>' and the email address. If this environment variable is not set, the emailfrom is used as described above.
SENDGRID_REPLYTO	No	The reply to address for emails. If this environment variable is not set, 'noreply@lianja.com' is used.
SENDGRID_REPLYTONAME	No	The '<Full Name>' for the reply to address for emails.

From v9.4.

setAttr

Desktop	Web	Mobile

Args

name as Character, value as expression

Description

Set the specified App setting to the specified value. See also Custom Builders.

setData

Desktop	Web	Mobile

Args

controlsource as Character, value as expression

Description

Set the controlsource from the current cursor to the specified expression.

setDialogResult

Desktop	Web	Mobile

Args

result as Character

Description

Set the result for a dialog or dialog panel, e.g. in a custom button. The Lianja.getDialogResult() method can be used to return the set value.

setFocusInSearchBox

Desktop	Web	Mobile

Args

None

Description

Set the focus to the Instant Search Box.

setNamedParameter

Desktop	Web	Mobile

Args

name as Character, value as Character

Description

Set the specified named parameter to the specified value. This can be used to set {parameter} or ?parameter macros in virtual table definitions.

setRelationship

Desktop	Web	Mobile

Args

page as character, parentSection as character, childSection as character, parentKey as character, childKey as character

Description

Relate two sections. See also Related Data.

setTranslationText

Desktop	Web	Mobile

Args

language as Character, oldtext as Character, newtext as Character

Description

Override the translation of oldtext in the specified language to newtext.

setupUI

Desktop	Web	Mobile

Args

None

Description

Execute setupui.prg to apply custom MetaData. See Lianja MetaData API for more information.

showAppWizard

Desktop	Web	Mobile

Args

None

Description

Display the App Wizard. See also Custom Builders.

showDialog

Desktop	Web	Mobile

Args

title as Character, page as Character [, width as Numeric [, height as Numeric [, buttons as Numeric [, ontop as Numeric
[, modal as Numeric [, action as Character [, text as Character [, resizable as Numeric]]]]]]]]

Description

Pop up a standard dialog and embed the specified page from the page library into it. For the Web and Mobile Clients, the page must be a .rsp, .jssp or .pysp script or (from Lianja v5.3) a Visual Component. From v6.0, App UILib pages are supported in the Web and Mobile Clients. Note: the width and height must be specified in JavaScript desktop code.

showDialogForm

Desktop	Web	Mobile

Args

title as Character, formcontentproducer as Character

Description

Pop up the specified form based on the formcontentproducer. The formcontentproducer is a Visual Component form saved as a LianjaScript (.prg/.dbo), Javascript (.js) or Python (.py) script. The formcontentproducer specification can include '?' followed by ';' separated name=value property pairs. If no extension is specified, '.dbo' is assumed. The "app:/appname" prefix can be used to access a form in the App referenced by "appname". Note: in the Web Client, Lianja.showDialogForm() is a synonym of Lianja.showDialogPage().

showDialogPage

Desktop	Web	Mobile

Args

title as Character, contentproducer as Character [, zoomout as Boolean]

Description

Animate a dialog page over the Page viewport. The contentproducer can be a URL (e.g. "https://www.lianja.com"), a .rsp, .jssp or .pysp script, a Visual Component or a "funcname()" string that dynamically creates a container. By default, the title is centered in the titlebar, which includes a righthand x to close. The title can be specified as an empty string ("") to omit the titlebar or include the following special characters:

"<" (lefthand < in titlebar)
"<x" (lefthand x in titlebar)
">x" (righthand x in titlebar)
"< Back" (lefthand click to go back in titlebar)

Dialog pages are stacked. They can be removed from the stack with Lianja.hideDialogPage(). The dialog page 'zooms out' by default. In the web client, if zoomout is false, the dialog page 'fades in'.

showDialogPanel

Desktop	Web	Mobile

Args

title as Character, page as Character [, width as Numeric [, action as Character [, text as Character]]]

Description

Slide a dialog panel in from the right of the main window and embed the specified page from the page library into it. For the Web and Mobile Clients, the page must be a .rsp, .jssp or .pysp script or (from Lianja v5.3) a Visual Component. From v6.0, App UILib pages are supported in the Web and Mobile Clients. Prefix the page specification with '-' to disable the default 'Done' and 'Cancel' buttons, e.g. '-page5'. If width is a negative number, the dialogPanel will slide from the left. Specifying a width of "100%" will animate the dialog panel in place and it will occupy the whole page viewport (Web client).

showDocument

Desktop	Web	Mobile

Args

action as Character | filename as Character

Description

Perform a Lianja UI action. On the desktop, it can also open filename using its file association. See Using the showdocument() function and Lianja.showDocument() method for details.

showErrorMessage

Desktop	Web	Mobile

Args

message as Character [, minimumwidth as Numeric | webtitle as Character]

Description

Show the specified message. The minimumwidth is supported on the desktop in Lianja/VFP. If specified, the message stays visible until Lianja.hideMessage() is called. If minimumwidth is > 1 this is the minimum width of the displayed message. If it is = 1, the message is displayed top right; if < 1, centred. The webtitle is supported in web/mobile and if specified, is displayed as the title of the message box.

showErrorMessageWithIcon

Desktop	Web	Mobile

Args

message as Character [, notimeout as Boolean | timeoutinverval as Numeric]

Description

Show the specified message. If notimeout is true, the user must click/touch to hide the message. If notimeout is false (default), the message will be hidden after 5000 milliseconds. Alternatively, timoutinterval can be specfied in milliseconds to hide the message after that interval.

showForm

Desktop	Web	Mobile

Args

title as Character, form as Character

Description

Activate form built with the Form Designer.

showHelp

Desktop	Web	Mobile

Args

title as Character, tablename as Character [, topic as Character [, showbuttons as Boolean]]

Description

Display help information. The tablename is the name of a table with the structure of:

helptopic char(60)
helptext memo

The table should be indexed on helptopic. For examples, please see the SHOWHELP() function.

showLoadingMessage

Desktop	Web	Mobile

Args

message as Character [, theme as Character]

Description

Show the specified message. In the web client, the message can also be the name of a .rsp file. The theme is supported in the web client ("a", "b", "c" or "d"). On the desktop, Lianja.showLoadingMessage() is the same as Lianja.showMessage().

showMessage

Desktop	Web	Mobile

Args

message as Character [, minimumwidth as Numeric | webtitle as Character]

Description

Show the specified message. The minimumwidth is supported on the desktop in Lianja/VFP. If specified, the message stays visible until Lianja.hideMessage() is called. If minimumwidth is > 1 this is the minimum width of the displayed message. If it is = 1, the message is displayed top right; if < 1, centred. The webtitle is supported in web/mobile and if specified, is displayed as the title of the message box.

showMessageWithIcon

Desktop	Web	Mobile

Args

message as Character [, notimeout as Boolean | timeoutinverval as Numeric]

Description

Show the specified message. If notimeout is true, the user must click/touch to hide the message. If notimeout is false (default), the message will be hidden after 5000 milliseconds. Alternatively, timoutinterval can be specfied in milliseconds to hide the message after that interval.

showMoverDialog

Desktop	Web	Mobile

Args

title as Character, caption as Character, items as Character, selecteditems as Character [, targetid as Character]

Description

Pop up a standard dialog to display the StringList Editor. For the Web and Mobile Clients, the targetid arg is required. See the StringList Editor for additional information.

showNavigationPanel

Desktop	Web	Mobile

Args

None

Description

Show the Navigation Panel if one is defined and not visible.

showNotification

Desktop	Web	Mobile

Args

message as Character, wait as Boolean [, count as Numeric] | [webtitle as Character]

Description

Show the specified notification message. On the desktop, the message is displayed until dismissed by the user if wait is true and the remaining number of notifications can optionally be specified. The webtitle is supported in web/mobile and if specified, is displayed as the title of the message box.

showPagesMenu

Desktop	Web	Mobile

Args

None

Description

Show the Pages Menu. This is the same as clicking or touching the "Hamburger" Pages Menu icon. It is most useful in conjunction with gestures in mobile Apps. The equivalent Lianja.showDocument("showpagesmenu") can also be used.

showPickList

Desktop	Web	Mobile

Args

title as Character, onselect as Function, oncancel as Function, width as Numeric, width as height, database as Character, table as Character, filter as Character, columns as JSON

Description

Show a pick list of rows from a table. In LianjaScript the picklist is modal and the onselect and oncancel functions are not required. See here for more details.

showProgressBar

Desktop	Web	Mobile

Args

value as Numeric, maxvalue as Numeric

Description

Show the ProgressBar at position value with a maximum of maxvalue.

showQueryBuilder

Desktop	Web	Mobile

Args

sectionid as Character, database as Character, table as Character [, columns as Character
[, filter as Character [, modal as Boolean [, minbuttons as Boolean]]]]

Description

Pop up a standard dialog and embed the Query Builder in it. The sectionid should be fully qualified, e.g. "page1.section". The database and table define the database to use and the table to be queried in the Query Builder. Optionally specify the columns to be included (default is all), a filter expression (use OData Operators), whether the dialog should be modal (default is false, ignored on non-desktop clients) and whether only the 'Cancel' and 'Done' buttons should be displayed (default is false).

showQueryBuilderPanel

Desktop	Web	Mobile

Args

sectionid as Character, database as Character, table as Character [, columns as Character [, filter as Character [, position as Character]]]

Description

Slide a dialogPanel in from the right of the main window and embed the Query Builder in it. The sectionid should be fully qualified, e.g. "page1.section". The database and table define the database to use and the table to be queried in the Query Builder. Optionally specify the columns to be included (default is all) and a filter expression (use OData Operators). On non-desktop clients, the position can be specified as 'left' to slide the dialogPanel in from the left.

showQueryPicker

Desktop	Web	Mobile

Args

title as Character, onselect as Character, database as Character, table as Character [, parameters as Character]

Description

Slide a dialogPanel in from the right of the main window and embed the Query Picker. The database and table define the database to use and the table that will be displayed in the grid. For details of the parameters, see Query Picker Parameters.

showQueryPickerPanel

Desktop	Web	Mobile

Args

title as Character, onselect as Character, database as Character, table as Character [, parameters as Character
[, width as Numeric]]

Description

Pop up a standard dialog and embed the Query Picker. The database and table define the database to use and the table that will be displayed in the grid. For details of the parameters, see Query Picker Parameters. On non-desktop clients, width determines the width of the dialogPanel. If it is a negative number, the dialogPanel will slide from the left. Specifying a width of "100%" will animate the dialogPanel in place and it will occupy the whole page viewport. The default width is 900 pixels.

showReportViewer

Desktop	Web	Mobile

Args

reportname as Character [, options as Character [, title as Character [, filter as Character [, canfilter as Boolean [, canemail as Boolean]]]]]

Description

Show the specified report in the viewer.

Argument	Description
reportname	One of the following: The name of a report created in the Report Builder. The name of an HTML file. The name of a .rsp, .pysp or .jssp file that will dynamically generate the HTML to be viewed. The name of an HTML article, e.g. "article:/myarticle.html". See ArticleView Options for information on ArticleView sections and document data merging.
options	The options can include any of the properties handled by a report section as well as: printer=printername e.g. \\sharedname\printername orientation=landscape\|portrait papersize=letter\|a4\|etc. e.g. "papersize=custom,3.00,1.00,inch@@printer=\\127.0.0.1\HP DeskJet 2600 series"
title	The Report Viewer window title.
filter	A where condition, e.g. "orderid=10428"
canfilter	If true, then a 'Filter' button allows use of the Query Builder to filter the records selected.
canemail	If true, then an 'Email' button allows the report to be emailed as an attachment. See below for full details.

Email

Clicking the 'Email' button displays a form allowing you to compose an email and send the report as an attachment. All fields are required.

Field	Description
To	The recipient identity in the format: <Full Name>email@domain e.g. "<Lianja Sales>sales@lianja.com" Note there is no space between '>' and the email address. If the '<Full Name>' is not specified, '<Lianja Cloud User>' is used.
Subject	The email subject.
Message	The email body in plain text or HTML.

The email is sent with the from address '<Lianja User ({username()})>support@lianja.com' and the reply to address '<noreply>noreply@lianja.com'.

The email can optionally be sent using Twilio SendGrid allowing the from and reply to addresses to be configured.

To do so, the following are required:

Signup for SendGrid at sendgrid.com
Set up the following environment variables:

Environment Variable	Required	Value
SENDGRID_APIKEY	Yes	Your SendGrid API KEY.
SENDGRID_SENDERIDENTITY	No	Your SendGrid verified sender identity in the format: <Full Name>email@domain e.g. "<Lianja Sales>sales@lianja.com" Note there is no space between '>' and the email address. If this environment variable is not set, the email from '<Full Name>' is '<{username()}>' and your registered SendGrid email address.
SENDGRID_REPLYTO	No	The reply to address for emails. If this environment variable is not set, 'noreply@lianja.com' is used.
SENDGRID_REPLYTONAME	No	The '<Full Name>' for the reply to address for emails.

Filter

Clicking the 'Filter' button allows use of the Query Builder to filter the records selected.

Print

Clicking the 'Print' opens the report in the system default PDF viewer allowing the report to be printed.

showSuccessMessage

Desktop	Web	Mobile

Args

message as Character [, minimumwidth as Numeric | webtitle as Character]

Description

Show the specified message. The minimumwidth is supported on the desktop in Lianja/VFP. If specified, the message stays visible until Lianja.hideMessage() is called. If minimumwidth is > 1 this is the minimum width of the displayed message. If it is = 1, the message is displayed top right; if < 1, centred. The webtitle is supported in web/mobile and if specified, is displayed as the title of the message box.

showSuccessMessageWithIcon

Desktop	Web	Mobile

Args

message as Character [, notimeout as Boolean | timeoutinverval as Numeric]

Description

Show the specified message. If notimeout is true, the user must click/touch to hide the message. If notimeout is false (default), the message will be hidden after 5000 milliseconds. Alternatively, timoutinterval can be specfied in milliseconds to hide the message after that interval.

showWarningMessage

Desktop	Web	Mobile

Args

message as Character

Description

Show the specified message.

showWarningMessageWithIcon

Desktop	Web	Mobile

Args

message as Character [, notimeout as Boolean | timeoutinverval as Numeric]

Description

Show the specified message. If notimeout is true, the user must click/touch to hide the message. If notimeout is false (default), the message will be hidden after 5000 milliseconds. Alternatively, timoutinterval can be specfied in milliseconds to hide the message after that interval.

spawn

Desktop	Web	Mobile

Args

executable as Character [, args as Character]

Description

Run the specified executable passing the optionally specified comma-separated list of arguments.

spawnApp

Desktop	Web	Mobile

Args

app as Character

Description

Run the specified App.

startHttpServer

Desktop	Web	Mobile

Args

[port as Numeric]

Description

Start the internal HTTP server, optionally specifying the port number. The default port is 8002 for the App Builder and 8003 for the App Center.

stopHttpServer

Desktop	Web	Mobile

Args

None

Description

Stop the internal HTTP server.

suspend

Desktop	Web	Mobile

Args

None

Description

Suspend execution when debugging a Windows standalone App. From v9.5.

switchDatabase

Desktop	Web	Mobile

Args

name as Character

Description

Switch to the specified database at runtime. This should contain tables with the same name and structure.

switchLanguage

Desktop	Web	Mobile

Args

code as Character

Description

Switch to the specified language code. See Automatic Language Translation for more details.

toggleLeftSidebarVisibility

Desktop	Web	Mobile

Args

None

Description

Toggle left sidebar visibility.

toggleNavigationPanel

Desktop	Web	Mobile

Args

None

Description

Toggle Navigation Panel visibility.

toggleRightSidebarVisibility

Desktop	Web	Mobile

Args

None

Description

Toggle right sidebar visibility.

translateText

Desktop	Web	Mobile

Args

language as Character, text as Character

Description

Return text translated to the specified language. See also Dynamic Language Translation.

unwatchFile

Desktop	Web	Mobile

Args

filename as Character | directory as Character

Description

Stop watching the specified file or directory for changes. Use the watchFile() method to watch a file/directory.

uploadFile

Desktop	Web	Mobile

Args

title as Character, caption as Character, extension as Character, onsuccess as Function, onerror as Function, remotescript as Character

Description

Display a file selection dialog popup where the user can select one or more files. The files are automatically uploaded and appended into the target table on the server. You can postfix arguments onto the remotescript name e.g.

Lianja.uploadFile("Choose a CSV file", "File", ".csv",
  onsuccess, onerror, "/upload_csvfile.rsp?import=southwind!customers");

uploadImageFiles

Desktop	Web	Mobile

Args

controlsource as Character, [multiple as Boolean, [title as Character, [onsuccess as Function, [onerror as Function]]]]

Description

Display a file selection dialog popup where the user can select one or more image files. The files are automatically uploaded and a new record (per image file) inserted into the target table on the server in the (blob) column as specified by the controlsource (table.column). The table must be open in the current App. If the optional multiple is true, multiple files can be selected, if false, only one file can be selected. The optional onsuccess function is passed one argument: a string containing a comma separated list of the files uploaded.

userDomain

Desktop	Web	Mobile

Args

None

Description

Return the domain/tenancy for the current user.

userName

Desktop	Web	Mobile

Args

None

Description

Return the username for the current user.

userRoles

Desktop	Web	Mobile

Args

None

Description

Return the roles for the current user.

version

Desktop	Web	Mobile

Args

None

Description

Return the current Lianja version (HTML formatted).

vibrate

Desktop	Web	Mobile

Args

seconds as Numeric

Description

On mobile devices, vibrate for the specified number of seconds. On web Client, sound a 'beep'.

watchFile

Desktop	Web	Mobile

Args

filename as Character | directory as Character

Description

Watch the specified file or directory for changes. There is a corresponding App delegate called filesystemwatcher which is called with one argument, the file/directory that has changed. Use the UnwatchFile() method to stop watching the file/directory.

writeDebug

Desktop	Web	Mobile

Args

debugtext as Character

Description

Write the debugtext string to the debug file.

writeError

Desktop	Web	Mobile

Args

errortext as Character

Description

Write the errortext string to the console.

writeLog

Desktop	Web	Mobile

Args

logtext as Character

Description

Write the logtext string to the log (desktop) or JavaScript Console (web/mobile).

writeOutput

Desktop	Web	Mobile

Args

output as Character

Description

Write the output string to the Output Window (desktop) or JavaScript Console (web/mobile).

Lianja System Object Methods

Contents

See Also

Methods by Category

App Builder

Commands and Scripts

Data Sessions

Dialogs and Panels

Email

Environment and State

HTTP Server (Internal)

Messages

Object Referencing

Page Element Display

Query Tools

Reports and Printing

Standalone Apps

Text Output

Translation

UI States

Uploading

Virtual Tables

Methods Alphabetically

addObject

addPage

addProperty

addTool

alert

applyMetaData

beep

changeState

clearNamedParameters

clipBoard

closeApp

confirm

createApp

createCursor

debug

deployAppIcon

emailReport

evaluate

evaluateAsync

evaluateJavaScript

evaluatePython

execute

exportReport

findElementByID

fullPath

generateAppDoc

generateDbDoc

get

getAppCategories

getAppInfo

getAttr

getAudio

getConnection

getControlsource

getCursor

getCurrentAcceleration

getCurrentLocation

getCurrentPosition

getData

getDialogResult

getElementByControlsource

getElementByID

getFiles

getOrientation

getParameter

getPhoto

getPicture

getURL

getVideo

hideDialog

hideDialogPage

hideDialogPanel

hideLoadingMessage

hideMessage

hideNavigationPanel

hideProgressBar

home
