The App Inspector

The App Inspector display changes based on the current workspace, showing tabs relevant to that workspace.

Clicking the small icon on the far right of the App Inspector title bar will detach it into its own floating window.

Double clicking the window title bar when it is floating will attach it back into place.

App Inspector


The File System Tab

The File System Tab contains files list pertaining to the Apps Workspace.

It has two internal tabs: Apps and Files.

Apps

The Apps tab contains the App Names panel and lists App names by App Center Tile category. Click on the arrow displayed to the left of the category name to expand and collapse the category (or double-click the category name).

When an App name is double-clicked, the App is opened in the Pages Workspace.

Apps Tab


Actionbar

Actionbar


Clicking New opens the App Wizard to create a new App.

Click Delete to delete the currently selected App. The App cannot be open. You will be prompted to confirm the deletion.

Additional Commands

Additional Commands


Command More Information
Copy... Copies the currently selected App. You will be prompted to enter the name for the copy.
Rename... Renames the currently selected App. You will be prompted to enter the new name.
Close Closes the currently selected App.

Context Menu

Right-clicking in the App Names panel displays the Apps context menu.

Context Menu


Menu Option More Information
New... Opens the Lianja App Wizard to create a new App.
Open... Opens the currently selected App in the in the Pages Workspace.
Delete... Deletes the currently selected App. The App cannot be open. You will be prompted to confirm the deletion.
Copy... Copies the currently selected App. You will be prompted to enter the name for the copy.
Rename... Renames the currently selected App. You will be prompted to enter the new name.
Close Closes the currently selected App.

Files

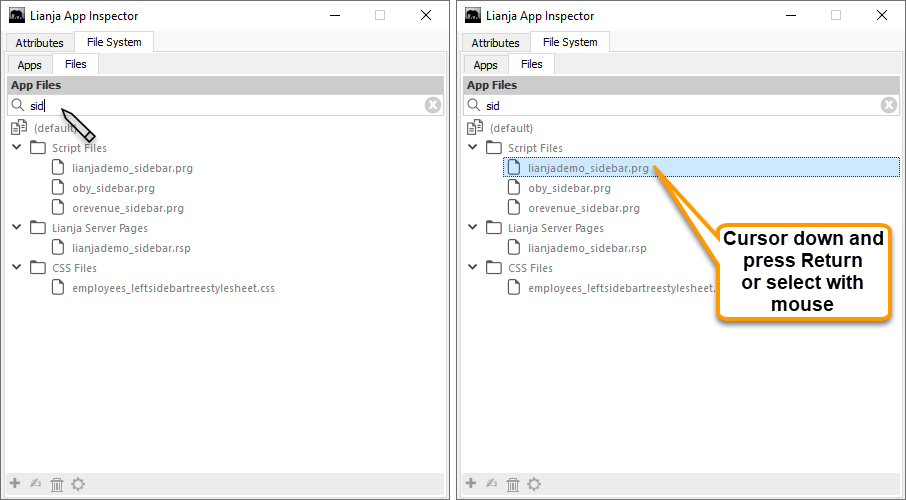

The Files tab contains the App Files panel and lists filenames by category for the currently open App (or the current directory when no App is open). Where there are files for a particular category, an arrow is displayed to the left of the category name and it can be clicked to expand and collapse the category (or double-click the category name).

When a filename is double-clicked, the file is opened in the Script Editor and the Apps Workspace is automatically selected.

Pro Tip

HTML files are opened in a WYSIWYG HTML editor (from Lianja v5.3).

Files Tab


Pro Tip

The Script Editor has a tabbed UI.
Double click a tab and the Script Editor will be detached into its own floating window.
Double click the window title bar and it will be attached back as a tab.

Note: Image files are opened in the system's default viewer.

Actionbar

Actionbar


Clicking New opens the Create a new file dialog, allowing you to select a file type and enter a file name.

Create a new file


File types:

Create a new file: File Types


After clicking Save in the Create a new file dialog, the file will be created and opened in the Script Editor in the Apps Workspace.

Additional Commands

Additional Commands


Command More Information
Import VFP project (.pjx)... See Importing Visual FoxPro Files: Importing Visual FoxPro Project Files.
Import VFP form (.scx)... See Importing Visual FoxPro Files: Importing Individual Visual FoxPro Files.
Import VFP library (.vcx)... See Importing Visual FoxPro Files: Importing Individual Visual FoxPro Files.
Modify Opens the currently selected file in the Script Editor.
You can also double-click a filename or use the Edit button in the actionbar to open a file for editing.
Rename... Renames the currently selected file.
Add to library Adds the currently selected file to the library. See the Library Workspace for more about the Lianja Library.
Add to page library Adds the currently selected file to the page library. See Working with UI Page Libraries for more about the Page Library.
Save as Component... Save as a Visual Component.
Refresh Refreshes the Files panel.

Context Menu

Right-clicking in the App Files panel displays the files context menu.

Context Menu


Menu Option More Information
New... Opens the Create a new file dialog to create a new file and open it in the Script Editor in the Apps Workspace.
Open File Opens the currently selected file in the Script Editor in the Apps Workspace.
Open File in Window Opens the currently selected file in a floating Script Editor window.
Open File in Debugger Opens the currently selected file in the appropriate debugger (where appropriate). From v5.3.
Show in Explorer Opens the location of the currently selected file in the operating system file explorer.
Open Command Prompt Here Opens an operating system command prompt in the App's directory.
Copy... Copies the currently selected file. You will be prompted to enter the name for the copy.
Rename... Renames the currently selected file. You will be prompted to enter the new name.
Delete... Deletes the currently selected file. You will be prompted to confirm the deletion.
Import VFP project (.pjx)... See Importing Visual FoxPro Files: Importing Visual FoxPro Project Files.
Import VFP form (.scx)... See Importing Visual FoxPro Files: Importing Individual Visual FoxPro Files.
Import VFP library (.vcx)... See Importing Visual FoxPro Files: Importing Individual Visual FoxPro Files.
Git... See Git Version Control for information.
Add to library Adds the currently selected file to the library. See the Library Workspace for more about the Lianja Library.
Add to page library Adds the currently selected file to the page library. See Working with UI Page Libraries for more about the Page Library.
Save as Component... Save as a Visual Component.
Debug Adds the currently selected file to the Lianja/VFP Debugger.
Applies to 'Script Files, (.prg), 'Form Files' (.scp) and 'Class Files' (.vcp) only.
Refresh Refreshes the Files panel.

See Also

Apps Workspace, CodeAssistant, Editor Settings, Script Editor
